The best defence for pipeline security

Plate-Guard is a major innovation for the protection of all buried pipeline assets – for oil and gas lines, high-voltage electricity grids, telephone and fiber optic cables or water and sewage networks. Plate-Guard is the optimal solution for the safety and protection of these underground assets.

More than 50% of third party damage to a pipeline is done accidentally by the excavator bucket of a mechanical digger. Tests show that the polyethylene plate cover resists the impact of a mechanical digger and prevents damage to the pipeline.

Technical Drawings

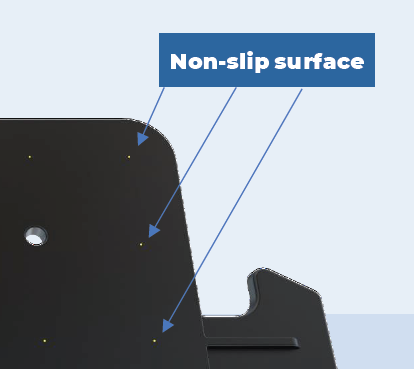

Product Features

Plate-Guard covers connect together securely and can navigate bends and accommodate elevation differences.

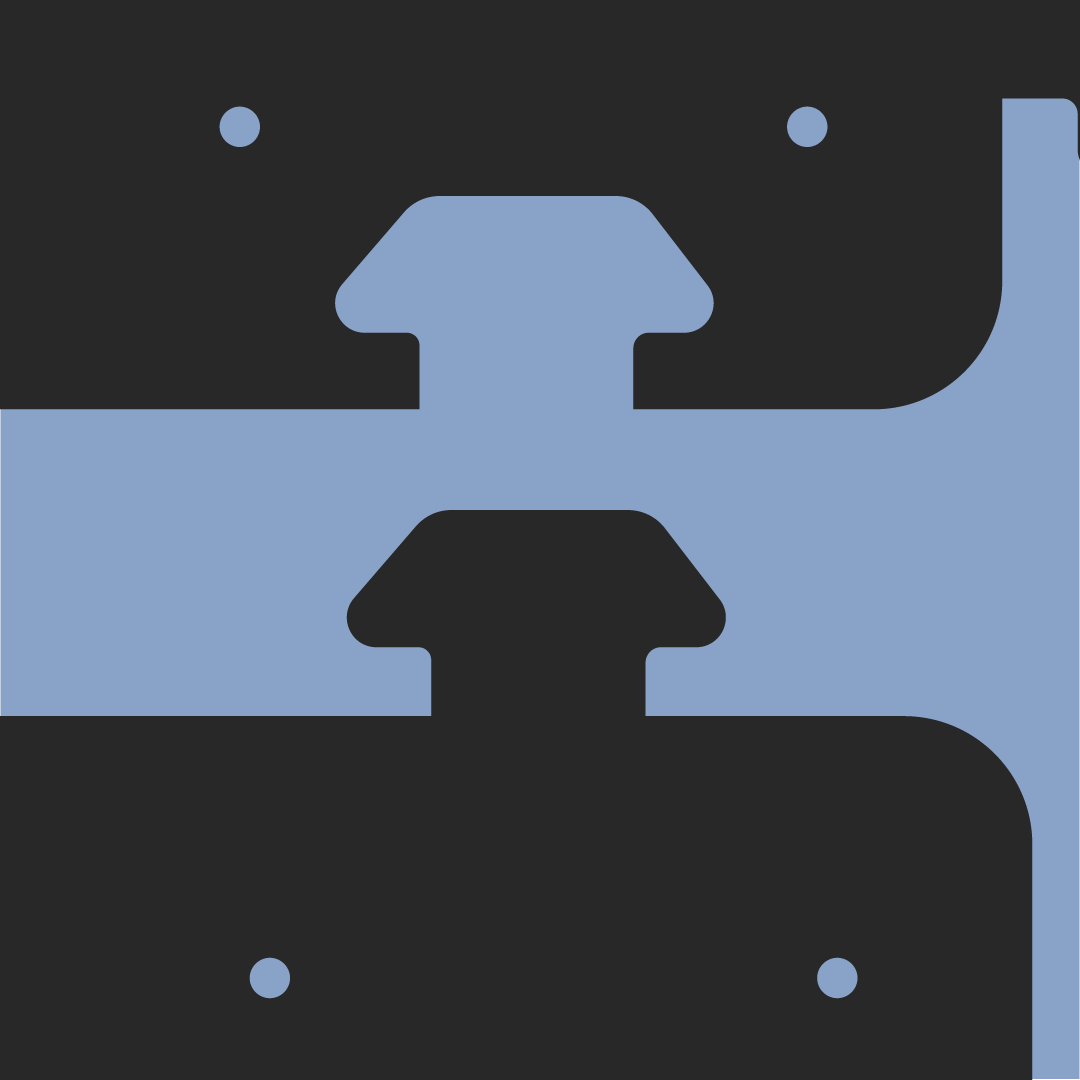

a. Male Connection Point

b. Female Connection Point

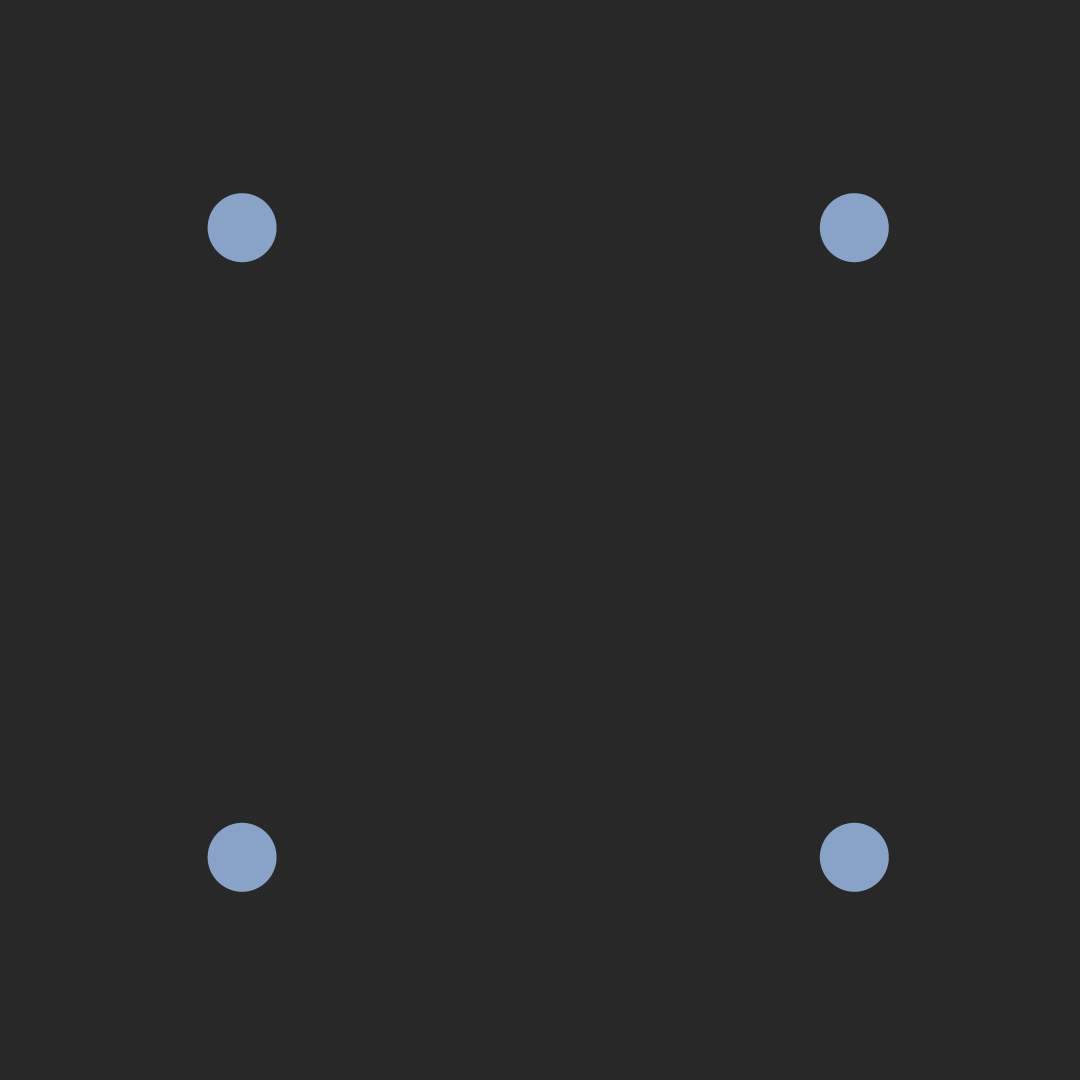

c. Drainage holes

The plate has 3mm diameter drainage holes over the surface to prevent the build-up of water.

d. Customer Information Indentations

Each plate cover has two indentations 100mm x 100mm (4″x4″) designed for a customized, adhesive sticker. The sticker is a hazard warning and can contain the asset owner’s information, web site and emergency telephone number.

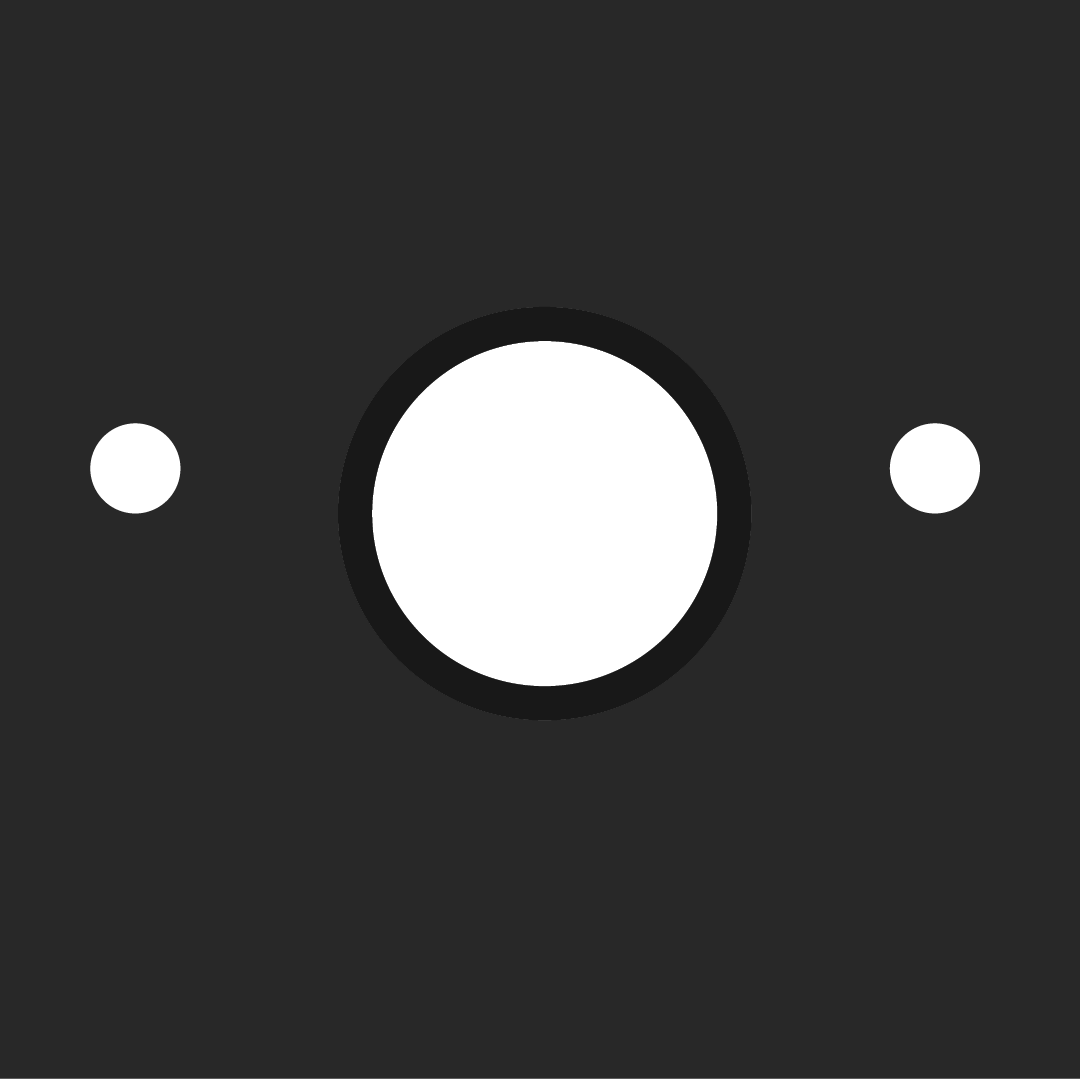

e. Peg Holes

The plates overlap and a short peg is inserted into the peg hole. This allows plate rotation and keeps the line of plates continuous without gaps.

Pivot Peg (for rotating plates)
Example of Peg Entering Peg Hole
Example of Bend

Product Dimensions

Plate-Guard has many applications, plate covers are supplied in three dimensions. The plates can be used in either direction, length ways or width ways.

Dimensions in both millimetres and inches.

PG1PG2PG3
Width1000
40″
500
20″
250
10″
Length1200
48″
1200
48″
1200
48″


Colours

The standard color of Plate-Guard is black. Other colors can be supplied upon request.

Packaging

Plate-Guard has been designed to fit the dimensions of a standard pallet which means optimal logistics to site.

Installation

To request the latest Installation Manual please click here.

PG1 (1000 x 1200)
PG2 (500 x 1200)
PG3 (250 x 1200)
